Reinforced Deep Beam with with non-aligned openings (ACI)

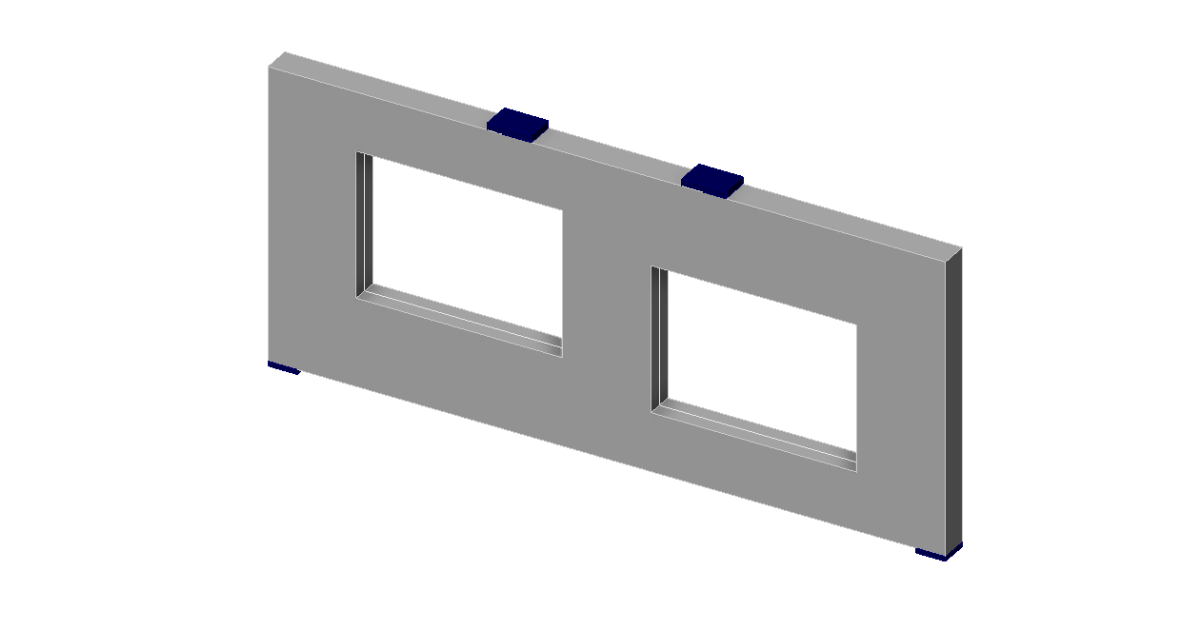

This model shows a reinforced concrete deep beam with large non-aligned openings designed according to ACI code. The geometry reflects typical construction practice, using evaluation of stresses, cracks and deflection for analysis of critical regions.

A suitable example for verification using the IDEA StatiCa Detail application.
